I have put together a list of parts that pertain mostly to 1985 Capris.
Alot of parts are
also correct for 1985-1986 Capris/Mustangs.
PLEASE NOTE! THESE PARTS ARE NOT FOR SALE!
If you are looking for an EXCELLENT
supplier of ascMcLaren parts go to:
WWW.ASCMCLAREN.COM!
Weasel Words: I am sure some of this information is inaccurate. Some of these parts may not be correct for a 1985 5.0L Capri since I am piecing stuff together without having the original parts, numbers or diagrams. Please be helpful and send my errors here.
Exterior
Part Number | Description |
Pics |
NOS/Used |
Note | Box |
Unknown | Windshield Washer Nozzle |
NOS |
|||
D9ZZ-13550-A | License Plate Lights |
NOS |
|||
D9ZZ-6602228-A | 79-82 Capri and 79-82 Mustang Cowl Grill |
NOS |
The Mustang changed to the single piece style somewhere around 1983 and the Capri got a SLIGHTLY revised version as well.. This grill requires a windshield trim piece. | ||
D9ZZ-6602228-A E3ZZ-6102228-A |
Capri/Mustang Cowl Grill (79-82) and later Mustang grill (83-93) Comparison. |
NOS |
Comparison of both Cowl Grills. | ||
D9ZZ-6602228-A E3CB-62102228-AWA |
79-82 Mustang/Capri Cowl Grill and the very similar 83-86 Capri Cowl Grill |
1,2,3, 4,5 |
NOS | The Capri grill changed VERY slightly in 1983. Image 3 shows the SCREW hole that was DELETED in 1983 (the early grill is on the right). Image 4 shows the redesign of the rearward tabs (the early grill is on the bottom). Image 5 shows a metal plate attached to the underside of the early one (bottom). | |
E2ZZ-18A927-A | Antenna bezel |
NOS |
|||
E3CY-8A223-A | Mercury Grill Emblem |
NOS |
|||
E3FZ-06122404-B |
Blacked out door handles. |
REPRO |
Actually Texas Mustang lists them as D9 | ||
E3ZZ-6102228-A | 1983?-1986 Mustang Cowl Grill |
NOS |
This is the one piece cowl grill for the 83-86 Mustang. Earlier ones were two pieces. | ||
E4DZ-00017526-A E1MC-WW16-A |
Windshield wiper arms and blades. |
NOS & REPRO |
|||
E4LY-17A387-A | Lincoln License Plate Frame |
TBD |
Not stock for a Capri or Mustang but would be a nice touch. | ||
E5ZZ-16A038-AP | RH Fender Moulding Behind Wheel to Door |
NOS |
|||
E5ZZ-16A039-AP | LH Fender Moulding Behind Wheel to Door |
NOS |
|||
E5ZZ-17A385-A | Front License Plate Bracket |
NOS |
|||
E5ZZ-17682-A | LH Outer Mirror |
NOS |
|||
E5ZZ-17682-B | RH Outer Mirror |
NOS |
|||
E5ZZ-17682-A E5ZZ-17682-B |
Comparison of the outer mirrors. |
NOS |
Are they supposed to be different sized? I think yes, the angle of the mirrors has to be different for the driver since he does not sit in the center of the car. | ||
E5ZZ-6120938-AP E5ZZ-6120939-AP |
Exterior Door Belt Mouldings |
NOS |
|||
E5ZZ-6129038-AP E5ZZ-6129039-AP |
Mustang rear quarter hard plastic mouldings. | 1, 2 | NOS | ||
E5ZZ-6129076-AP E5ZZ-6129077-AP |
Rear Quarter Mouldings |
USED |
Nearly NOS | ||
E5ZZ-6603148-AP | 79-86 Capri and 79-83? Mustang Cowl Windshield Trim |
NOS |
This is the second piece to complete the cowl. | ||
E9ZZ-6121596-A | Run channel liners. |
NOS |
Goes in the door's window frame. |
Part Number | Description |
Pics |
NOS/Used |
Note | Box |
Unknown | Map Light |
Used |
|||
Unknown | Premium Radio w/No Cassette |
Used |
|||
N/A | Auto Custom Carpets Capri Floor Mats |
NEW |
Dark Grey with Cat logo. | ||
Unknown | Coat Hooks |
NOS |
|||
Unknown | Fuel Door and Trunk Release Buttons |
USED |
|||
Unknown | SVO E-Brake Lever | 1, 2 | USED | Oh, you SO need a leather wrapped brake leather to go with the leather steering wheel! | |
D1FZ-2457-C | Brake and clutch pedal pads. |
NOS |
|||
D9AZ-13788-A | Dome Light and Lens |
NOS |
|||
D9AZ-66612C00-A | Seat Belt Plunger Bezels |
NOS |
These go in the door frames. | ||
D9ZZ-15A214-A | Fog Light Switch |
NOS |
|||
D9ZZ-17B733-A | 1979-82 Remote Mirror Knobs |
NOS |
Round. Don't know if they are even for a Mustang. | ||
D9ZZ-17B733-B | Mirror Adjustment Knob/Boot |
NOS |
|||
D9ZZ-6604320-A | 1979 Dash Hull | 1,2,3,4 |
NOS |
||

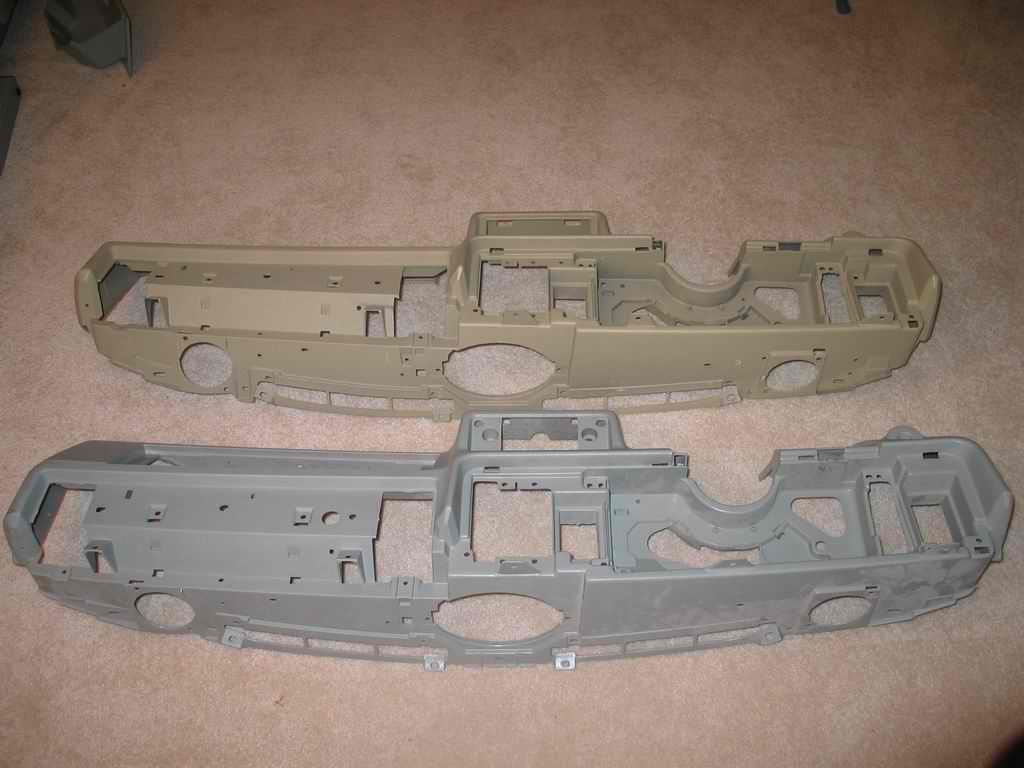

D9ZZ-6604320-A E5ZZ-6604320-A |
1979 and 1985 Dash Hulls |
NOS |
See if you can spot the differences (Radio and Glove Box and more). | ||

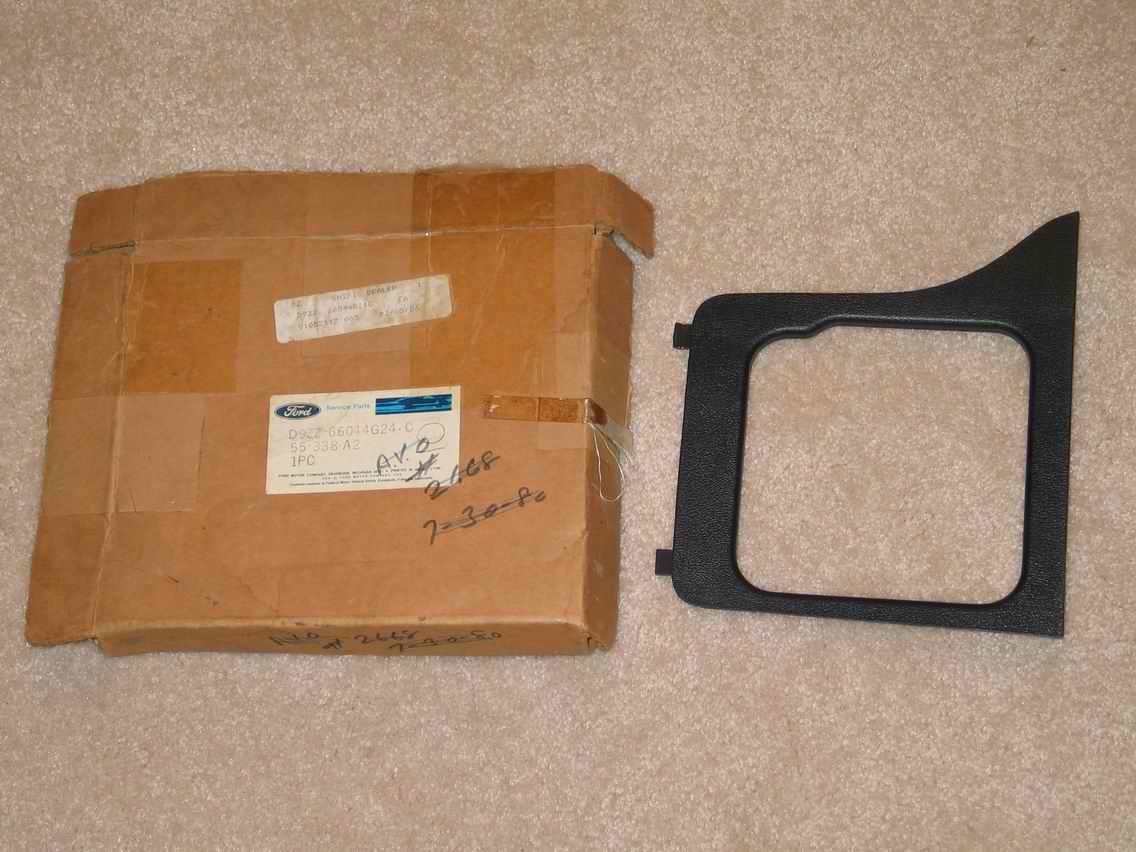

D9ZZ-66044G24-C | 5 Speed Console Trim Plate |
NOS |
|||
D9ZZ-6604567-A | Console Coin Tray |
REPRO |
The emergency brake gasket always fell off the originals. | ||
D9ZZ-6606010-B | 1979-83? Glove Box Door. |
NOS |
NOT quite correct for 1985-1986. The key area has a larger indentation than the later ones. | ||
D9ZZ-660660A96-A | Console Latch |
NOS |
|||
D9ZZ-6621850-B | Door Lock Knob (Black) |
NOS |
|||
E2EB-5823342 | Black window Crank |
USED |
|||
E2ZZ-14527-A | Black Power Window Switch Bezel (LH) |
NOS |
The picture is actually of a used one. | ||
E2ZZ-18519-A | HVAC control knobs. |
NOS |
|||
E3DZ-11582-A | Ignition Lock Cylinder |
NOS |
Correct Black Top for Mustang GT or Capri RS/5.0. | ||
E3DB-17A553-A1A | Wiper switch w/smooth handle. |
USED |
|||
E3DZ-17A553-A2A | Wiper switch w/ridged handle. |
NOS |
|||
E3ZZ-6123942-ACA E3ZZ-6123943-BEA |
83 Grey Door Panels |
USED |
Note that they are very similar to the 85-86 ones. However, the top area is a faux leather instead of being perforated and there is dark grey bottom carpet instead of "silver". | ||
E3ZZ-61428A10-E |
Cargo Cover Brackets |
NOS |
|||
E45Y-5402354-A | Kick Panel Retainer |
NOS |
|||
E4DE-18971-AA | Premium Sound Speaker |
USED |
|||
E4DZ-5406072-B | Glove Box Latch |
NOS |
|||
E4FZ-6224140-A8P E4FZ-6224141-A8P |
Arm rests. |
NOS |
|||
E4LY-13C775-A | Dome Light Switch Boots |
NOS |
|||
E4ZZ-13305-A | Turn signal stalk. | 1 | USED | This picture also shows the E6 stalk that replaced this one in 1986. Note the difference in the headlight graphic and the bent pin on the E4 stalk. | |
E4ZZ-17C476-A | Intermittent Wiper Module |
NOS |
|||
E4ZZ-3600-B | Steering Wheel |
USED |
|||
E4ZZ-3600-B | Capri Steering Wheel |
USED |
|||

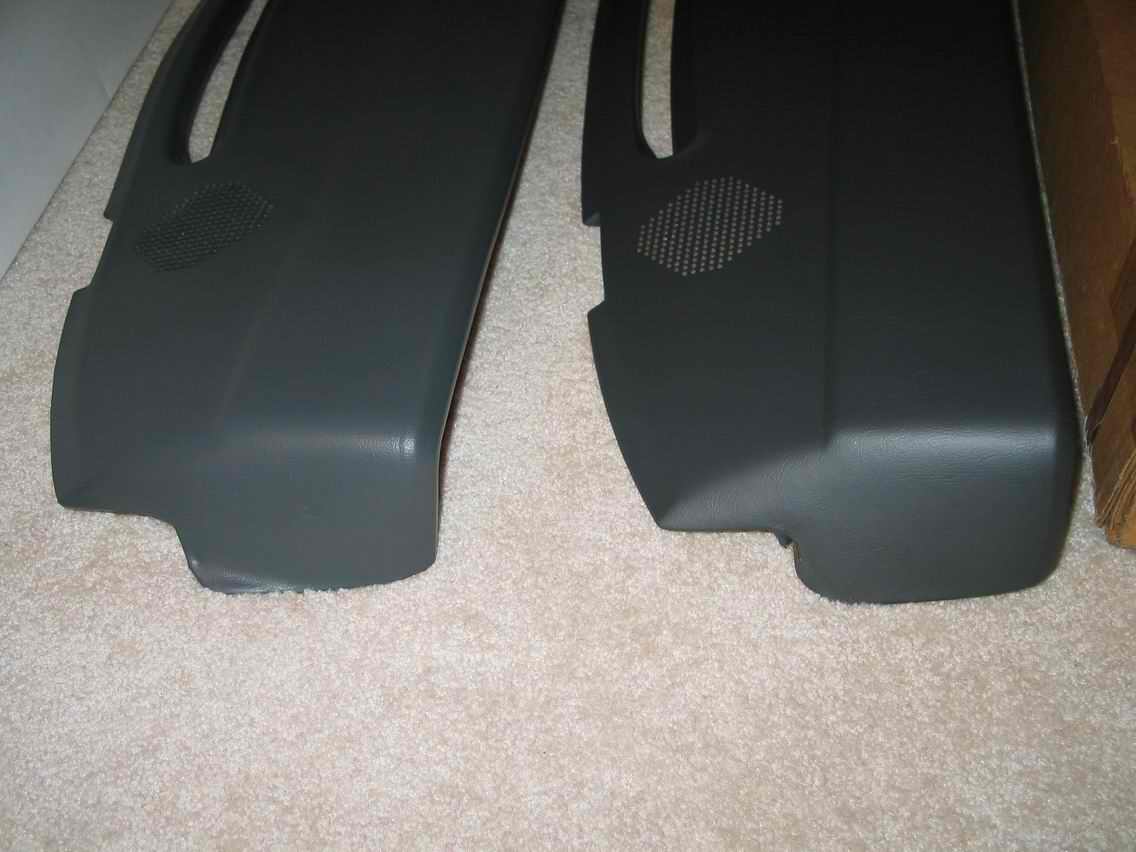

E4ZZ-6104282-A8P | Dash Pad. OEM and Repro. |
NOS & REPRO |
Pictures 1 and 2 show a NOS Ford dash pad and the Repro equivalent. The Repro one is a bit "bendy". The Ford one is very rigid. Pictures 3 and 4 show the difference in the speaker holes. The Ford one (picture 3) looks ALOT cleaner. If you look closer at the repro one there are numerous small defects in the speaker hole area. Picture 5 shows the curled up end of the repro vs the Ford one. | ||
E4ZZ-61611A72-E | Front RH Seat Belt |
NOS |
|||
E5FZ-17700-A | Rear View Mirror |
NOS |
|||
E5ZB-17D698-A E5ZB-17D699-A |
Remote Mirror Bezels |
USED |
|||
E5ZB-6106015-AA | 1985-86 Glove Box Door. |
USED |
Slightly smaller indentation than the 1979 one. | ||
E5ZZ-13A805-AE | Horn Pad w/Ford Emblem |
USED |
|||
E5ZZ-19980-B | HVAC with rear defroster and AC |
NOS |
|||
E5ZZ-6104104-B3P E5ZZ-6104105-B3P |
Cloth Visors And Clips |
NOS |
|||
E5ZZ-6104105-D2P | Left Hand Vinyl Visor | 1, 2 | NOS | Used in TTop and (I think) sunroof cars. | |
E5ZZ-6106024-CGR | Console Arm Rest |
NOS & REPRO |
Note the repro on the right. It looks the same from the top but the underside does not have the (always cracked) molded black plastic piece. | ||
E5ZZ-6123942-BFA | RH Door Panel |
NOS |
Extremely rare find. | ||
E5ZZ-9725-A | Accelerator Pedal |
NOS |
|||
E6ZZ-13305-A | Turn Signal Arm |
NOS |
|||
E6ZZ-61611A73-A | Front LH Seat Belt |
NOS |
|||
E6ZZ-66611A72-A E6ZZ-61611A73-A |
Front LH Convertible Seatblets |
NOS |
Shows a comparison of the two seatbelts. The WHITE one is for a Coupe/Hatcback. The BROWN one is for a vert. The vert one is for the RH as I was confused about the differences in vert and HB belts before. | ||
E6ZZ-66611A73-A E4ZZ-61611A72-E |
Front RH Seat Belt |
NOS |
Shows a comparison of the 1984 Hatchback belt and the 1986 Convertible belt. Note the difference in the housings. The hatchback got a "snout". | ||
E8DZ-13713-A | Dome Light Switch |
NOS |
|||
E9-LY-19476-A | Heater Core | 1,2 | NOS | Note the corner of the tube coming out of the center is brazed to the heater cor at the bend. Aftermarket units do not have this. | |
F0ZZ-6161202-B | RH Front Seat Belt Buckle. |
NOS |
Appears shorter than the 1986 LH seat belt buckle I have. Time for EBAY! | ||
F39Z-3F609-A | Tilt Steering Lever |
NOS |
|||
XC2F-18814-CA | Ford Rear Speaker Kit |
NOS |
Kind of a neat thing to have. |
Part Number | Description |
Pics |
NOS/Used |
Note | Box |
Unknown | 1986 Power Trunk Release for Notchback. |
USED |
|||
Unknown | Hood Bumpers and Adjustable Hood Bumpers |
NOS |
|||
389068-S | Hatch Bumpers |
NOS |
|||
D9ZZ-16740-A | Hood to Firewall Seal |
NOS |
|||
E1ZZ-16C764-A | Hood Hinge Cups |
NOS |
|||
E2ZZ-19B516-A | Trunk Wiring Harness |
NOS |
I think this is for a notch. DOH! | ||
E2ZZ-9008-A | Lower Fuel Filler to Body Seal |
TDB |
|||
E3ZZ-16916-A | Hood Release Cable |
NOS |
|||
E?SZ-9030-A | 1985 Gas Cap |
USED |
Note the raised letters. | ||
E43Z-5422380-A | 1984-86 Hatchback Window Support |
NOS |
Used to keep the door window tight. Note the soft velvet/canvas covering. When these go bad, your window gets scratched. | ||
E5ZZ-15702-A | Under Hood Light Harness |
NOS |
|||
E6DZ-1462-A E2FZ-1448-A |
Spare Tire J Hook and Nut |
NOS |
|||
E8SZ-9030-A | 1988 Gas Cap. |
NOS |
VERY close to the original which had raised letters. | ||
F2UZ-16828-B | Hood Prop Rod Retainer |
NOS |
|||
N803387-S300 | Hood Insulator Retainers |
NOS |
Part Number | Description |
Pics |
NOS/Used |
Note | Box |
Unknown |
Carburetor Solepot |
NOS |
|||
Unknown | Power Steering Cap |
NOS |
|||
Unknown | Power Steering Rack |
REFURB |
This is the correct one for sport steering. 2.5 turns lock to lock (15:1 ratio) | ||
Unknown | Valve Cover Bolt Set |
NOS |
Missing two of the wire holders. | ||
Unknown | 85 V8 Exhaust System |
NEW TAKEOFF |
Two small cats and the infamous Y Pipe. | ||
Unknown | Power Steering Pump AC Delete Bracket |
USED |
Moves the PS pump up to where the AC unit would go. | ||
D4AZ-9E688-A | Air Cleaner Vacuum Connector |
TBD |
This is for the 5.0 Air Cleaner. | ||
D5AZ-12029-A | Engine Coil |
NOS |
|||
D8BZ-10718-A | Battery Hold Down |
NOS |
|||
D9PZ-9155-A | Fuel Filter |
NOS |
|||
D9VZ-12A199-A | Duraspark Module | 1 | NOS | 79-85 Blue Grommet Module | |
D9ZZ-10732-A | Battery Tray |
NOS |
|||
D9ZZ-6A666-A | PCV Valve |
NOS |
|||
E0SZ-8A193-A E6SZ-8A193-A |
Radiator Brackets |
NOS |
Note the three widths of the rubber pads. One if them must have been labeled wrong. | ||
E0ZZ-14301-B | Negative Battery Cable |
NOS |
|||
E2EH-19D623-AA | Air Compressor |
NOS |
|||
E5ZE-8146-BA E2ZE-8146-EA |
Fan shroud comparison. | 1, 2, 3, 4, 5, 6, 7 | USED | Compares the 82-85 and 85 5.0L shrouds. | |
E3AZ-6766-A | Oil cap. |
NOS |
|||
E3SZ-19A566-B | Vacuum Canister |
NOS |
|||
E3ZE-9A624-CA E3ZE-9A624-DA |
Air cleaner to fender tubes. |
NOS & USED |
Also E1BZ-9A624-A and D9LZ-9A624-A | ||
E3ZZ-9A486-E | Smog Pump |
NOS |
|||
E4DZ-18472-E E5ZZ-18472-J |
Heater Hoses |
NOS |
The first (E4DZ-1918472-E) is the simple one with a single bend. It goes to the manifold from the heater core. It is the larger diameter hose. The second (E5ZZ-18472-J) goes to the water pump from the heater core. | ||
E4ZE-12127-DA | 1984 Distributor with Cast Iron Gear |
NOS |
Note the "bumpy" gear on the end of the distributor. This is a cast gear for a non roller cam. | ||
E4ZZ-9278-A | Oil Sender |
NOS |
|||
E5ZE-9A427-AA | Exhaust Flapper Valve | 1, 2 | TBD | ||
E5ZF-12B567-AA | 85 Carbed CPU |
USED |
Supposedly Worthless. |
||
E5ZZ-12127-B | 85 Carbed(?) Distributor |
TBD |
Motorcraft: DA-1988 | ||
E5ZZ-14289-F | Engine Harness |
REPRO |
Excellent harness. | ||
E5-ZZ-16738-A | Mustang Underhood Insulator Pad |
NOS |
1983-1986 Mustang Underhood Insulator Pad. I had gotten this thinking it would work on the Capri, but it does not. The Capri used the same pad as the 1979-1982 Mustang. | ||
E5ZZ-17618-A | Washer/Overflow Resevoir |
NOS |
|||
E5ZZ-8501-A PW-212 |
Water Pump | 1,2,3,4 | NOS | Note the curved impellars. Unique for the 1985 model year. | |
F5-TE-8505 (casting) | Water Pump | 1,2,3,4 | NOS | Supposed to be a direct replacement. It has a 1995 casting and very noticeable differences. | |
E5ZZ-9A758-A | Accelerator Cable. |
USED |
It looks like it was on a car for less than a week. | ||
E5ZZ-9600-E | CFI Dual Snorkel Air Cleaner |
NOS |
Slightly different than the carbed version. A slightly larger opening. The pictures here show it with an aftermarket chrome lid. | ||
E6LY-8100-A_RS64 | Radiator Cap |
NOS |
|||
E7HZ-11450-A | Solenoid |
NOS |
|||
E7LY-6B209-A | Belt Tensioner |
NOS |
The pulley and spring "slot" are different than the stock 1985 one. | ||
E7VY-18D358-A | Heater hose restrictor. | 1 | NOS | Not much to see but it's in that blue baggy. | |
E9PZ-9A586-E | 4180C Rebuild Kit |
NOS |
|||
F0PZ-10316-A | Voltage Regulator |
NOS |
|||
M-12106-A302 |
Distributor Cap Kit |
NOS |
|||
M-12127-A303 | Distributor | 1,2 | NOS | Cast Iron gear and Duraspark and .467" diameter shaft. | |
WR3946-C | Motorcraft Spark Plug Wires |
NEW |
I haven't seen true 1985 wires but I think they are grey like these. |
Part Number | Description |
Pics |
NOS/Used |
Note |
?? | 79-84? Map light |
Used |
Used for TTops and sunroof cars? | |
?? | 79-84 Radio Bezel |
Used |
||
?? | 79-82 Gauges |
Used |
||
E4ZZ-14KO32-A | 84-86 SVO Fuel Switch for the console. |
NOS |
||
2003-2005 Michael Negus All Rights Reserved.
Send Email to:
info@ascmclarencoupe.com
asc McLaren and Fox Bodied Mercury Capri Cars
